American DJ Encore LP32IP Outdoor RGBL Wireless DMX Wash/Blinder/Strobe Light

What's in the Box:

• American DJ Encore LP32IP Quad-Color IP-65 LED Panel for Wash, Blinder & Strobe Effects

• 25° Frost Filter

• Locking Outdoor Power Cord

Description:

ADJ’s Encore LP32IP is a multi-functional IP65-rated professional wash lighting fixture. It features 32 x 20-Watt 4-in-1 (red, green, blue, lime) color LEDs arranged into 8 individually controllable sections. The fixture offers a concise beam angle of 11-degrees, which can be widened to 25-degrees using the included diffusion filter and magnetic filter frame. Suitable for use both indoors and outdoors in any weather, this versatile fixture can be used as a color wash, blinder, or strobe.

Offering an impressive light output and versatile design, the ADJ Encore LP32IP is multi-functional LED wash lighting fixture with an IP65-rated casing. It is part of ADJ’s Lime Par Series of LED fixtures utilizing high output 4-in-1 color mixing LEDs that each include individually controllable red, green, blue and lime elements. Each LED is rated at 20-Watts and offers a wide variety of color options achieved through mixing the four primary colors at varying levels of intensity. These include white light with a variable color temperature of 2700K to 7000K, which can be easily selected using either linear control or preset macros. Inclusion of the Lime LED element boosts both CRI and perceived brightness as well as filling in gaps in the color spectrum.

The LP32IP’s LEDs are arranged into 8 individually controllable sections, which can be used to create engaging ‘eye candy’ animated patterns and pixel-mapped effects. It offers a tight native beam angle of 11-degrees, which can be easily widened to 25-degrees using the included diffusion filter and magnetic filter frame. The included heavy-duty bracket can either be used to stand the fixture directly on the floor or to mount it to truss using its integrated omega clamp receivers. The bracket’s design also incorporates a sure-lock system which slots into place at 10-degree intervals, making it extremely easy to set multiple fixtures to precisely the same angle.

Features:

• IP65 rated – protects from dust, sand, moister, water

• All metal construction with black housing

• Includes heavy duty floor / mounting bracket with omega clamp receivers

• Sure-lock locking bracket system (securely locks every 10°)

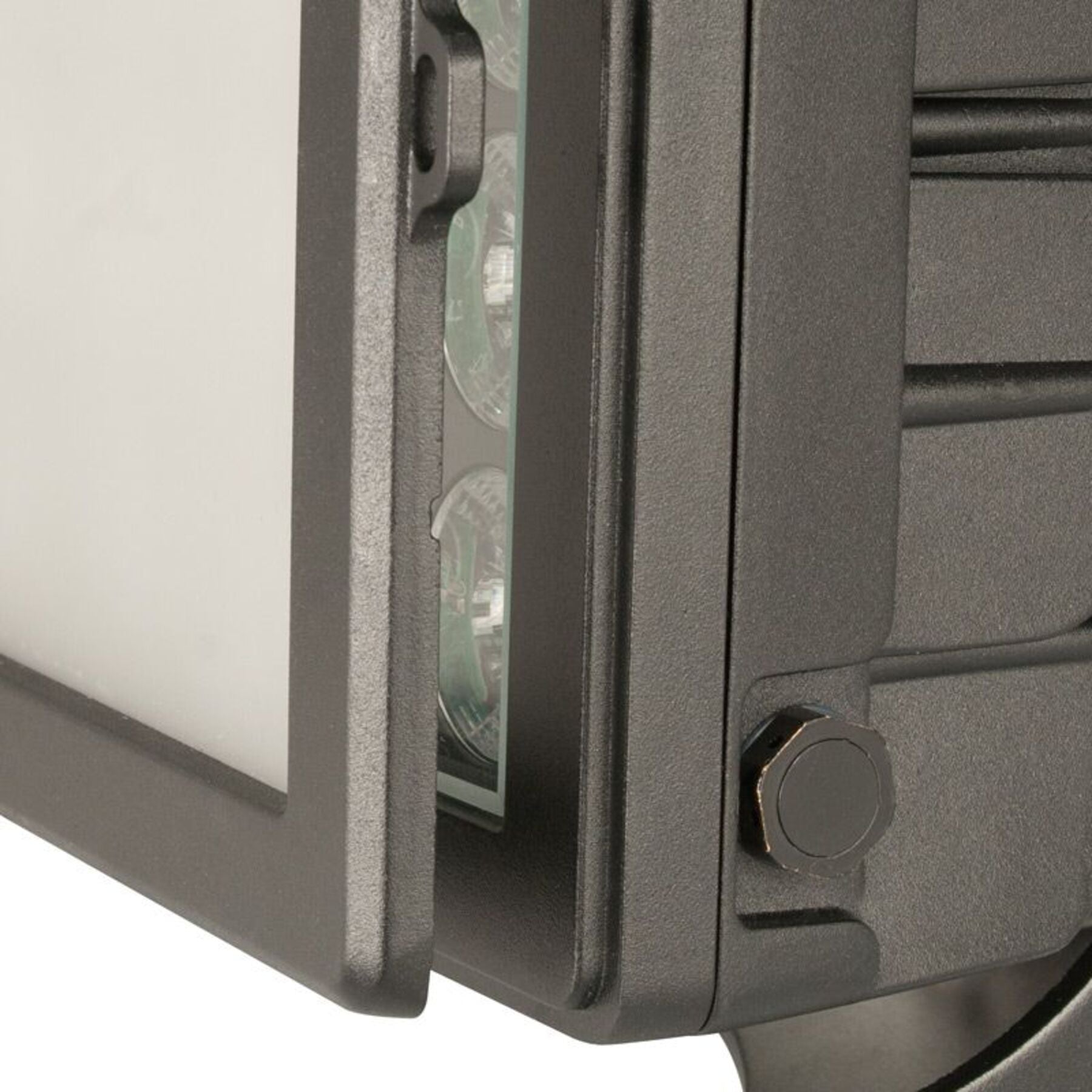

• Includes magnetic removable filter frame to add a diffusion filter

• Flicker free for film and broadcast

• Linear variable white temperature control (2700K - 7000K)

• Built-in antenna for WiFLY EXR Wireless DMX

Specifications:

• LED: 32 x 20W RGBL LED's (50,000 hr.)

• Beam Angle: 11°, 25° with Frost Filter

• Field Angle: 23.7°, 47° with Frost Filter

• LUX: 157,491 @ 1M, 6,300 @ 5M (Full On); 28,363 @ 1M, 1,135 @ 5M (Full On) with Frost Filter

• CRI: 84.9

• CRI R9: 59.3

• Display: OLED display with function buttons

• Data In/Out: IP65 Locking 5-pin XLR, DMX In/Out (with rubber protective covers over connections)

• Power In/Out: IP65 Locking Power In/Out (with rubber protective covers over connections)

• All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications

• WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight)

• Multiple DMX channel modes

• 8 individually controlled sections with Pixel Zone Control

• 0-100% Dimming + smooth 16-bit Dimming

• 6 Dim Modes

• 4 Dim Curves

• User settable Dim Speed control

• Control Mode: DMX512, RDM (Remote Device Management)

• LED Refresh Rate: 900Hz - 25Khz

• With Wired Digital Communication Network

• Selectable Fan Modes: Silent, Auto or High

• Power voltage: AC100-240V, 47/63Hz (Multi-voltage)

• Daisy chain up to 2 fixtures max (@ 120V); 6 fixtures max (@ 240V)

• Power consumption: 334W Max
• Dimensions: 13.9”x 9.7” x 6.5” / 353.4 x 246.0 x 165.5mm

• Weight: 24.25 lbs. / 11 kg.
• CE Certified
