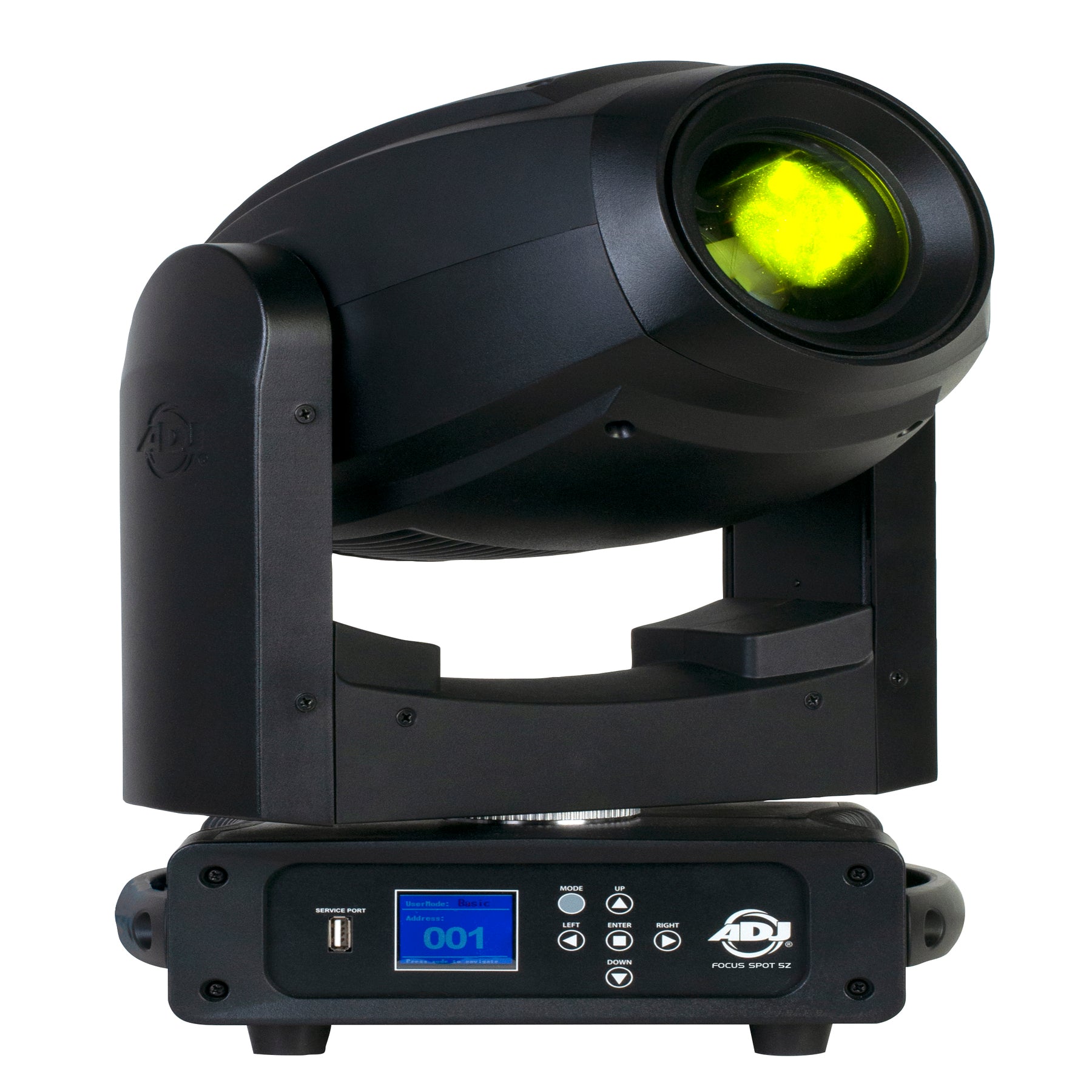

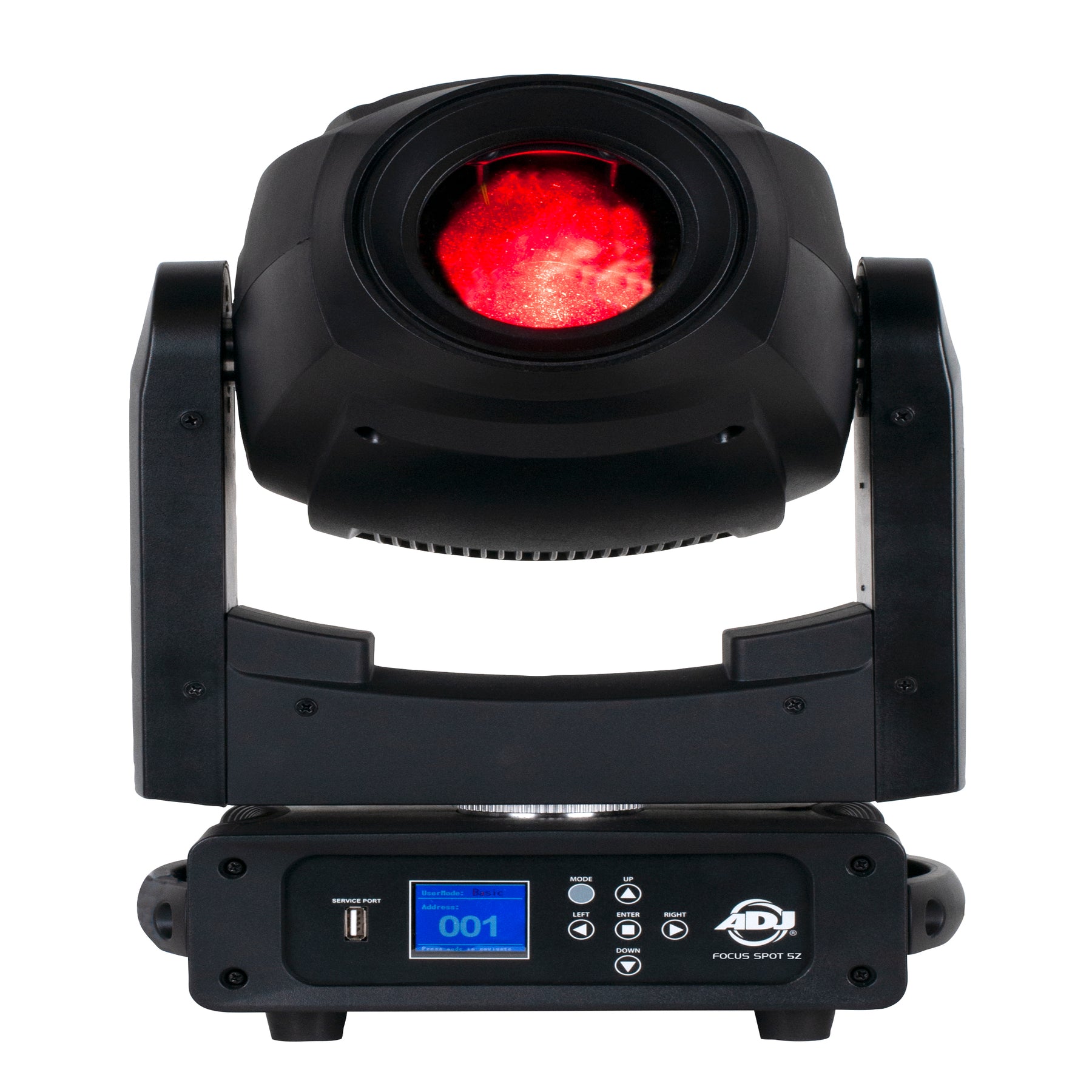

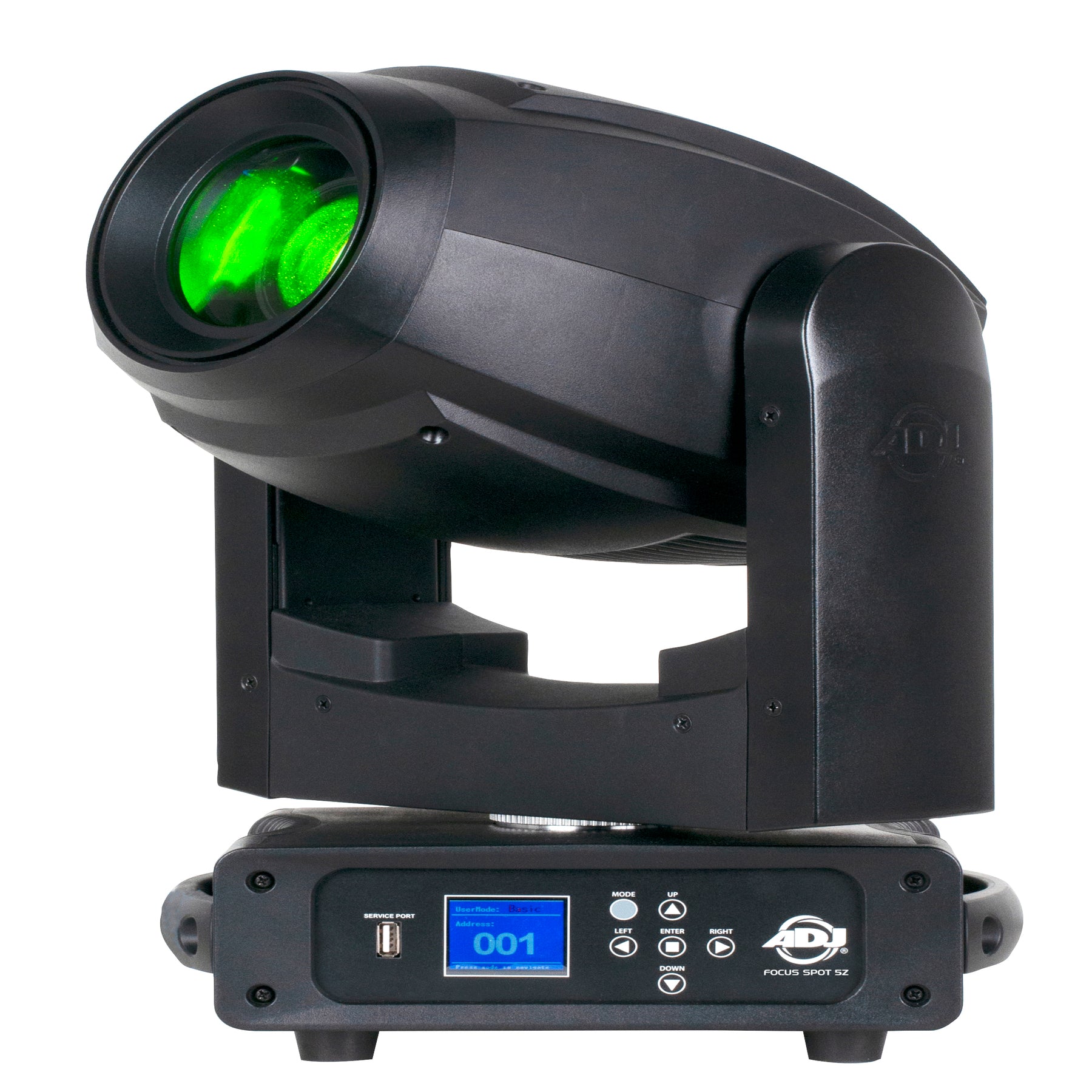

American DJ ADJ FOCUS SPOT 5Z 200 Watt Cool White LED DMX Moving Head Spot Light

What's in the Box:

• American DJ FOCUS SPOT 5Z 200 Watt Cool White LED DMX Moving Head Spot Light

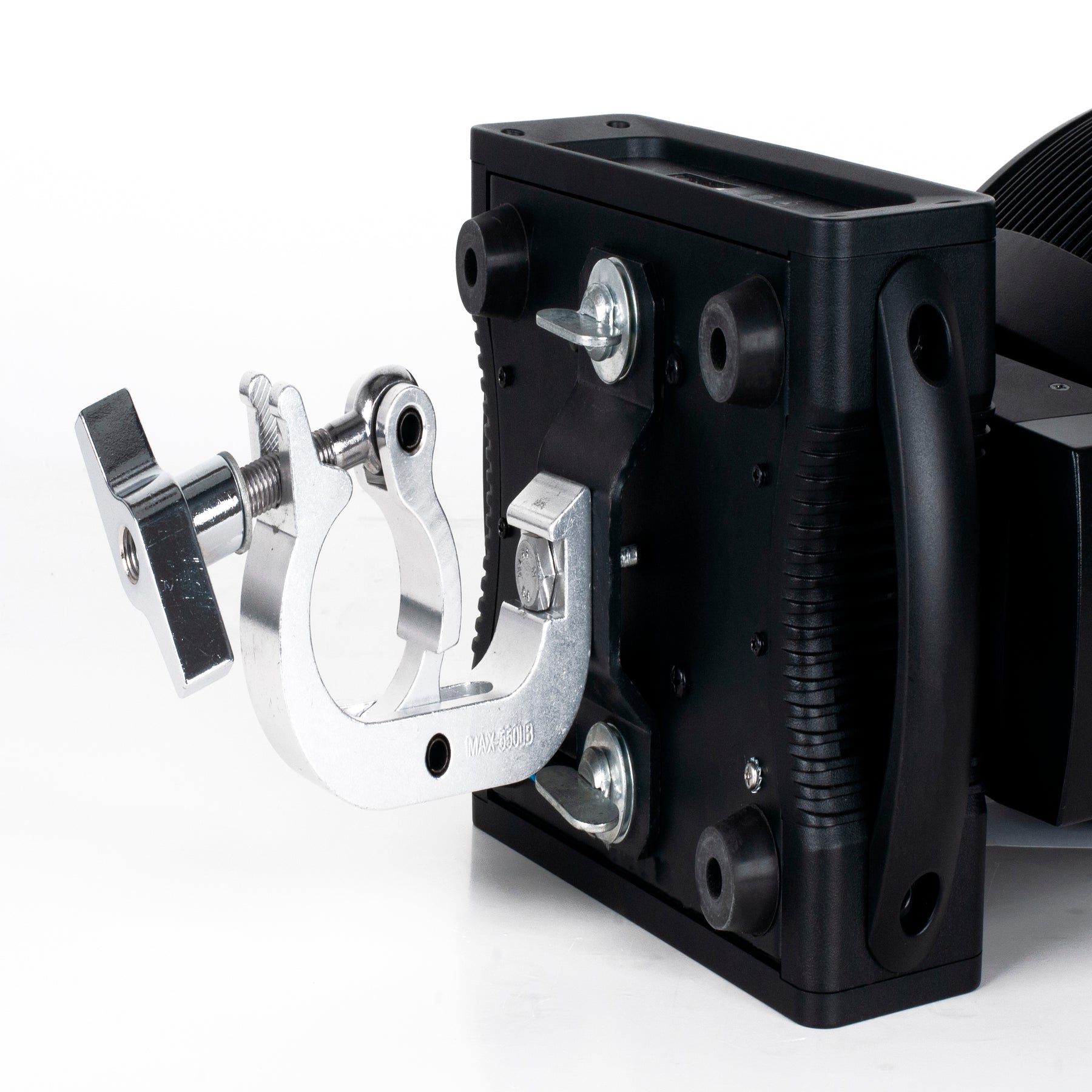

• Omega Bracket

• 1.83M locking power cable

Description:

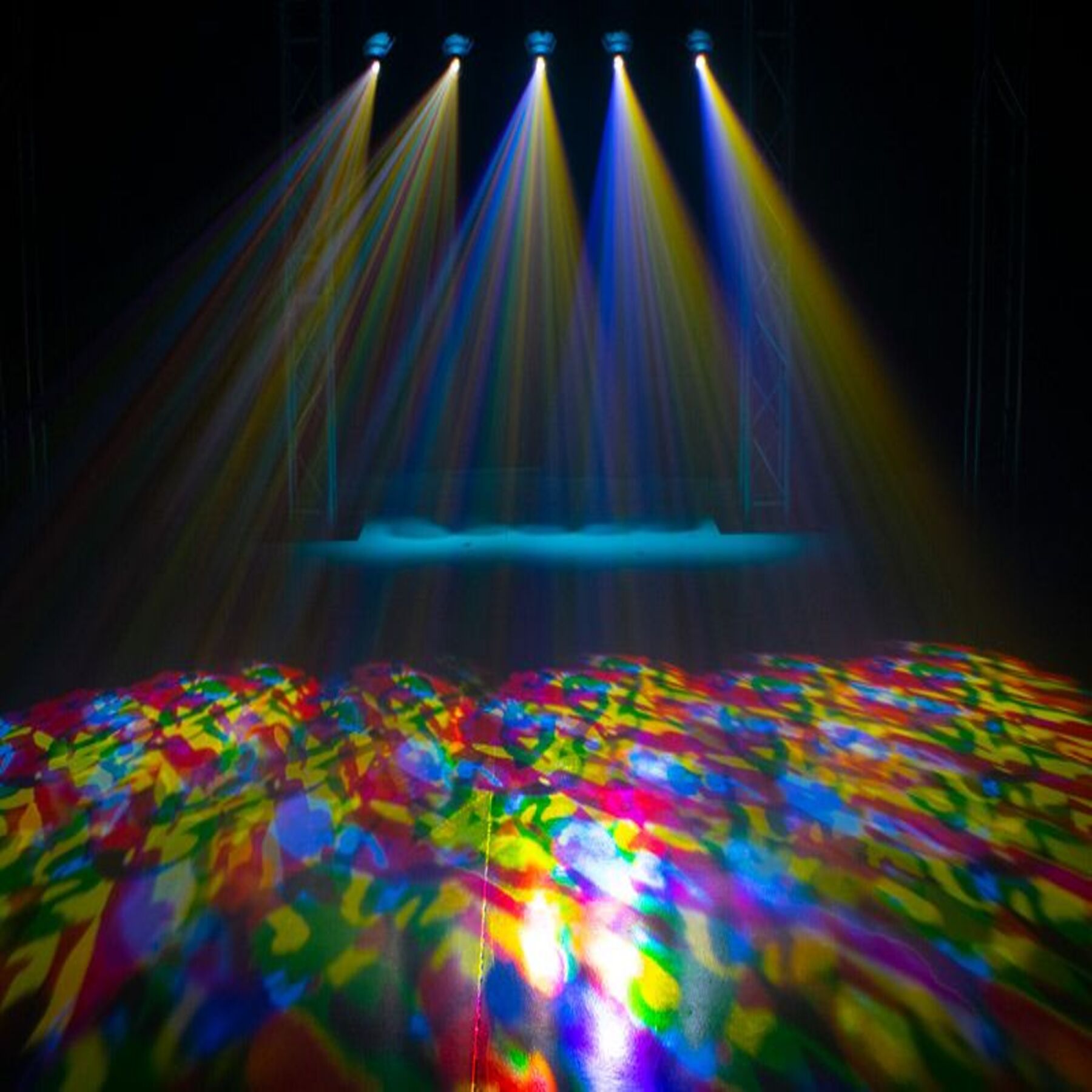

The Focus Spot 5Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus, zoom (11 ~ 22-degree zoom), and two Frost filters. It is designed for temporary live events and fixed installations in nightclubs, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS (5 aluminum and 1 glass GOBO), two COLOR wheels, each with 8 vibrant colors plus white, and 2 rotating/indexable prisms, (one 5-facet linear and one 6-facet circular). It also has two frost effects (heavy frost and light frost).

The Focus Spot 5Z has locking power In and out connectors to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 5Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

The Focus Spot 5Z fits in the ADJ DRC MH road case.

Features:

• Motorized Focus

• 2 Frost Filters to create wash effects

• Motorized Zoom: 11 ~ 22-degrees

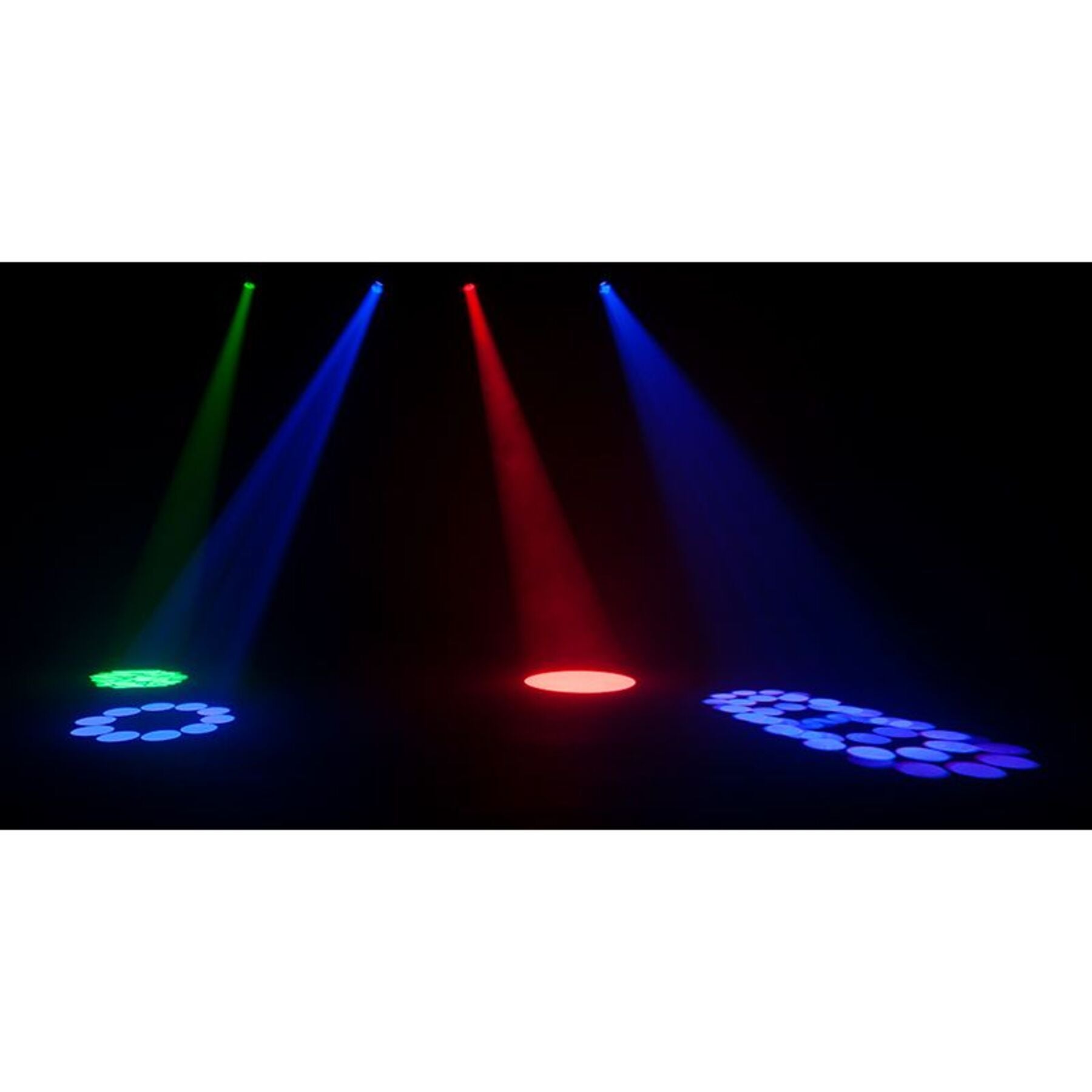

• 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• 2 cooling fans

Specifications:

• 200W Cool White LED Engine (50,000 hr.)

• 8 dichroic colors + white on two separate wheels (includes CTO, CTB and UV filters)

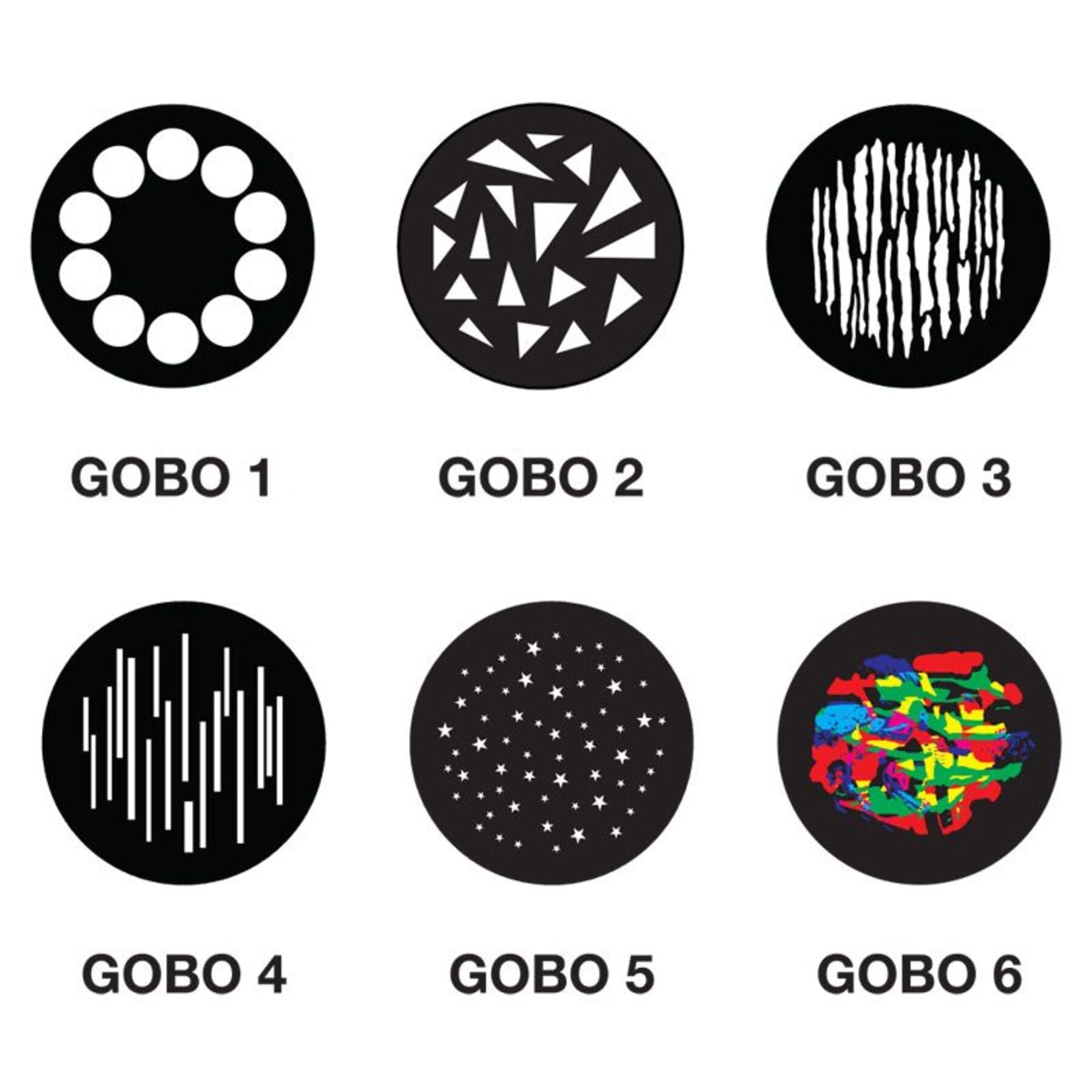

• 6 Gobos (5 aluminum GOBOs, 1 glass GOBO) + open

• All GOBOs are removable & rotatable

• GOBO Shake Effect

• Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

• Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

• Prism Wheel 1: Rotatable 6-facet Circular

• Prism Wheel 2: Rotatable 5-facet Linear

• Each Prism is indexable

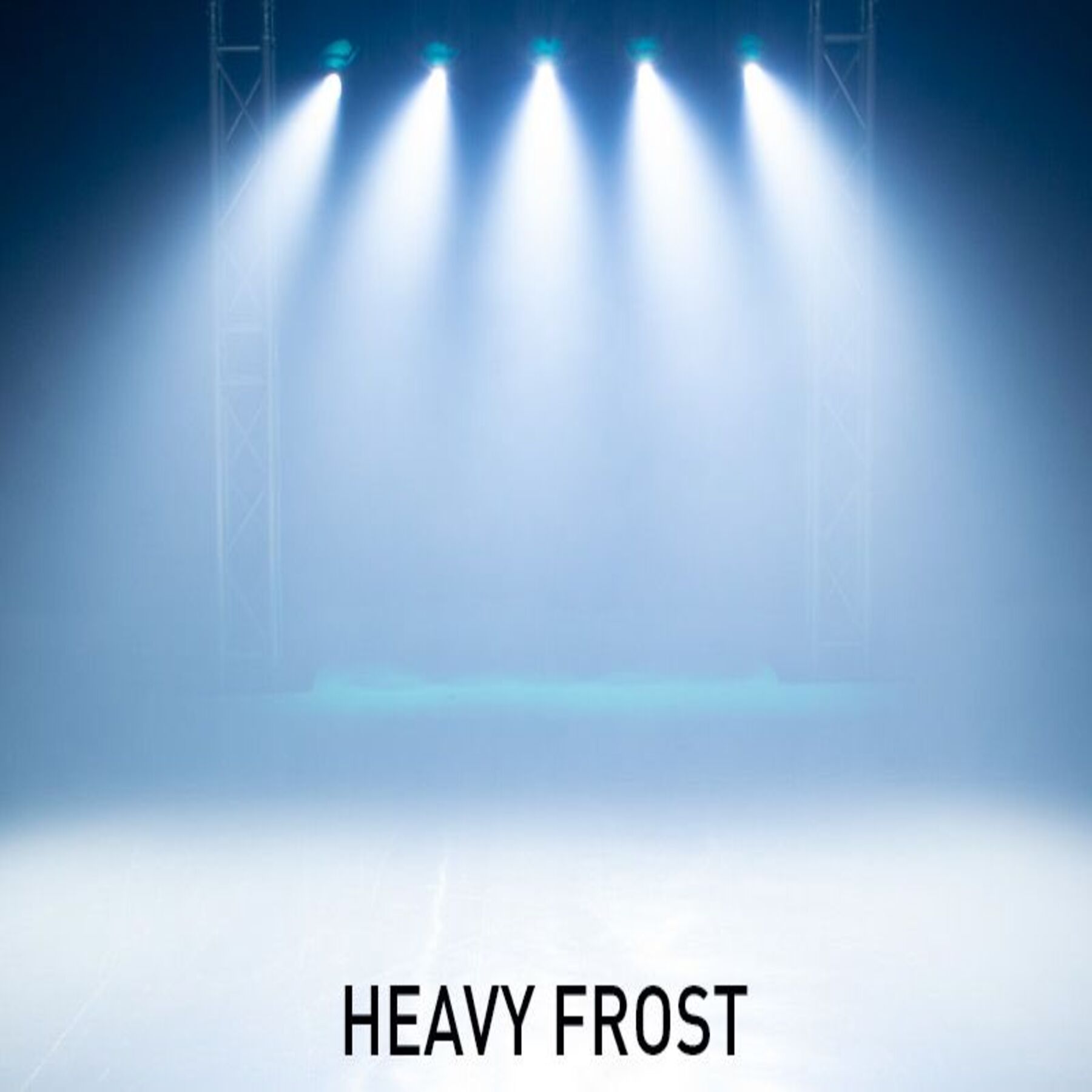

• Frost 1: Heavy frost for wash effect

• Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX
• 3 DMX Channel Modes: 19/22/26

• Color LCD display with 6-button function menu

• Control Mode: DMX512 or internal programs

• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

• 0-100% smooth dimming

• Various strobe speeds

• USB firmware update port

• With Wired Digital Communication Network

• RDM (Remote Device Management)

• Pan: 630 degrees

• Tilt: 270 degrees

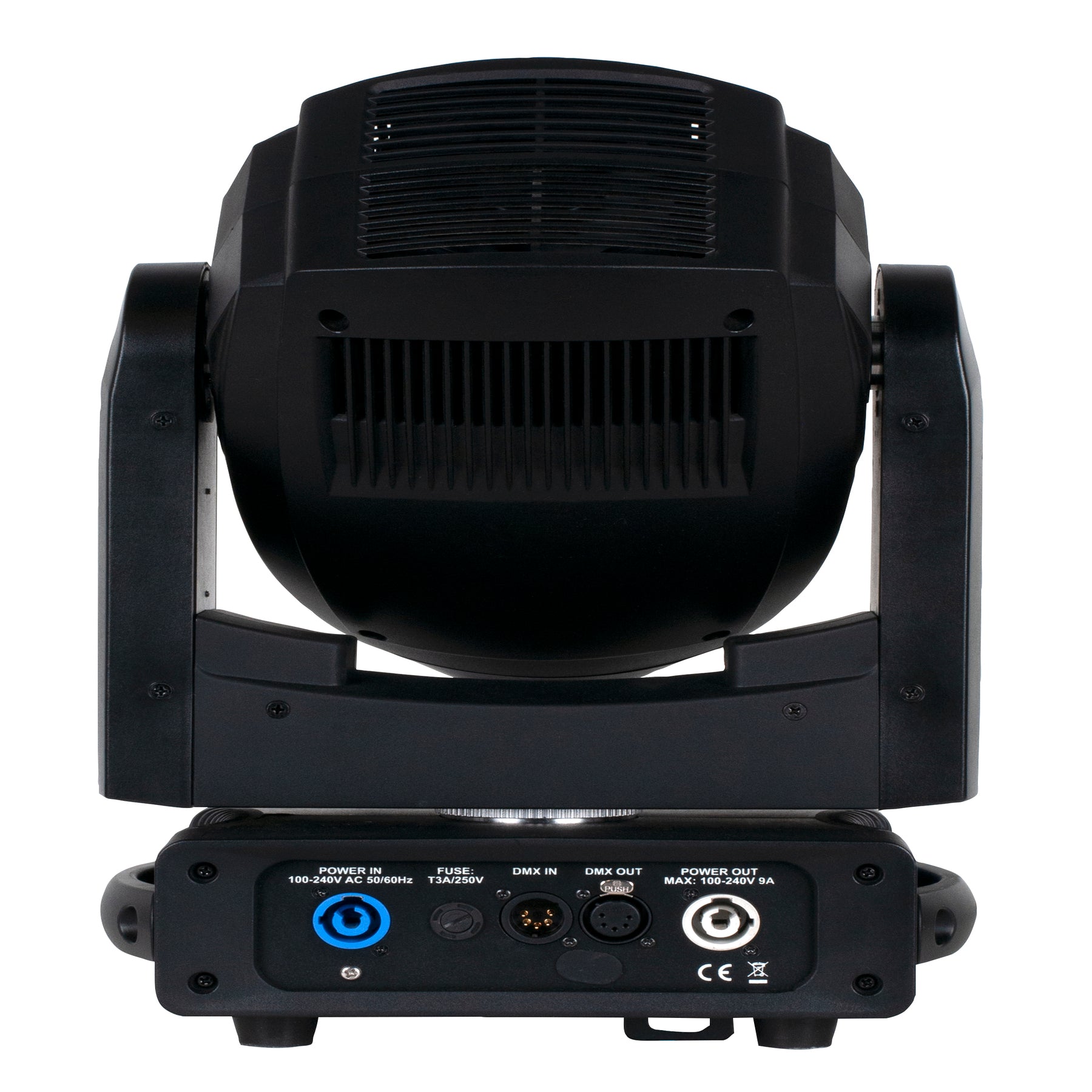

• DMX Connections: 5-pin XLR In/Out

• Power Connections: Power Lock In/Out to daisy chain power

• Multi-voltage operation: 90-240V, 50/60Hz

• Max power consumption: 280W
• Dimensions: 7.15” (L) x 10.97” (W) x 18” (H) (181.5 x 278.61 x 457.4mm)

• Weight: 23 lbs. / 10 kgs.
• ETL Approved / CE Certified
