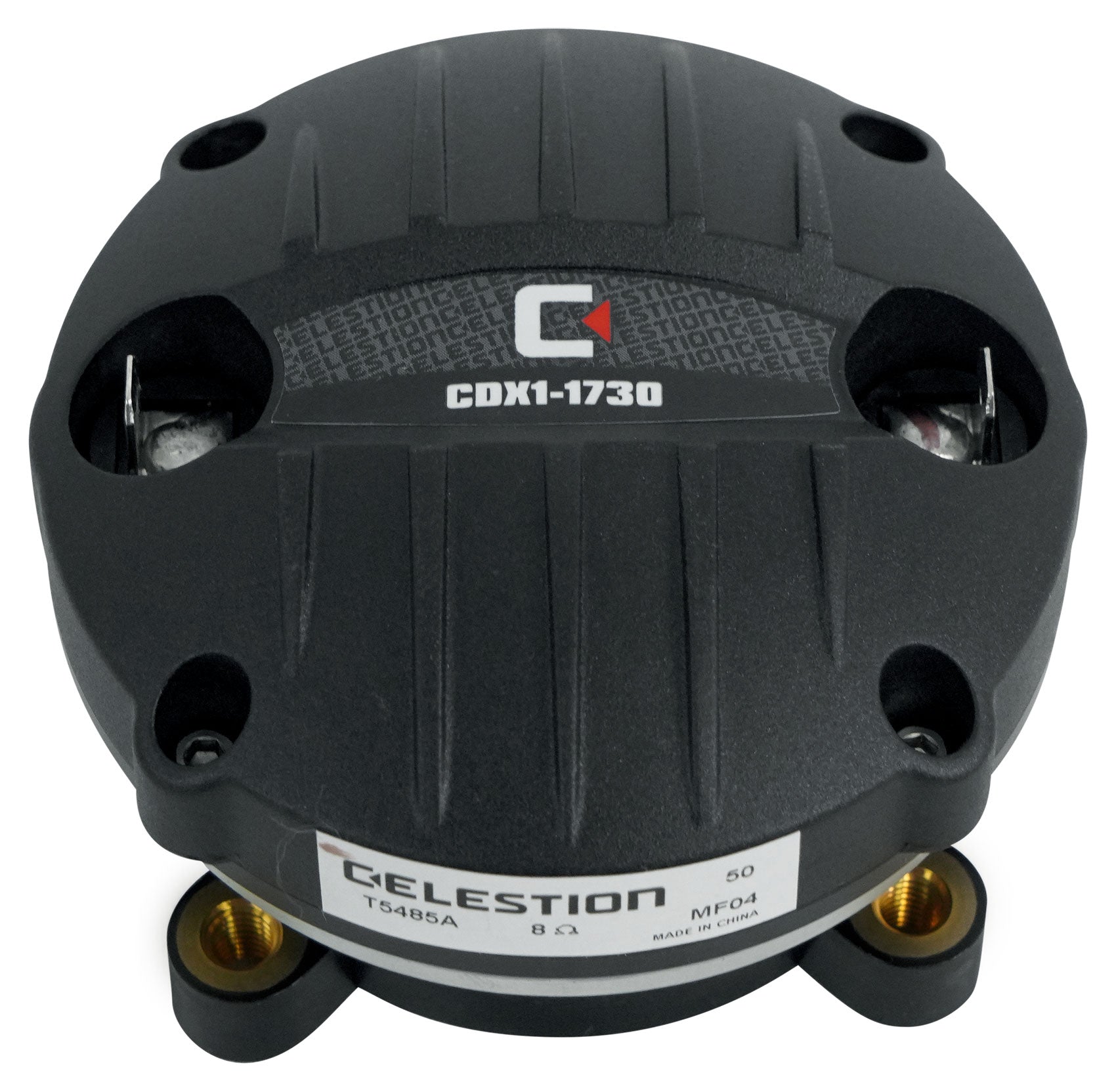

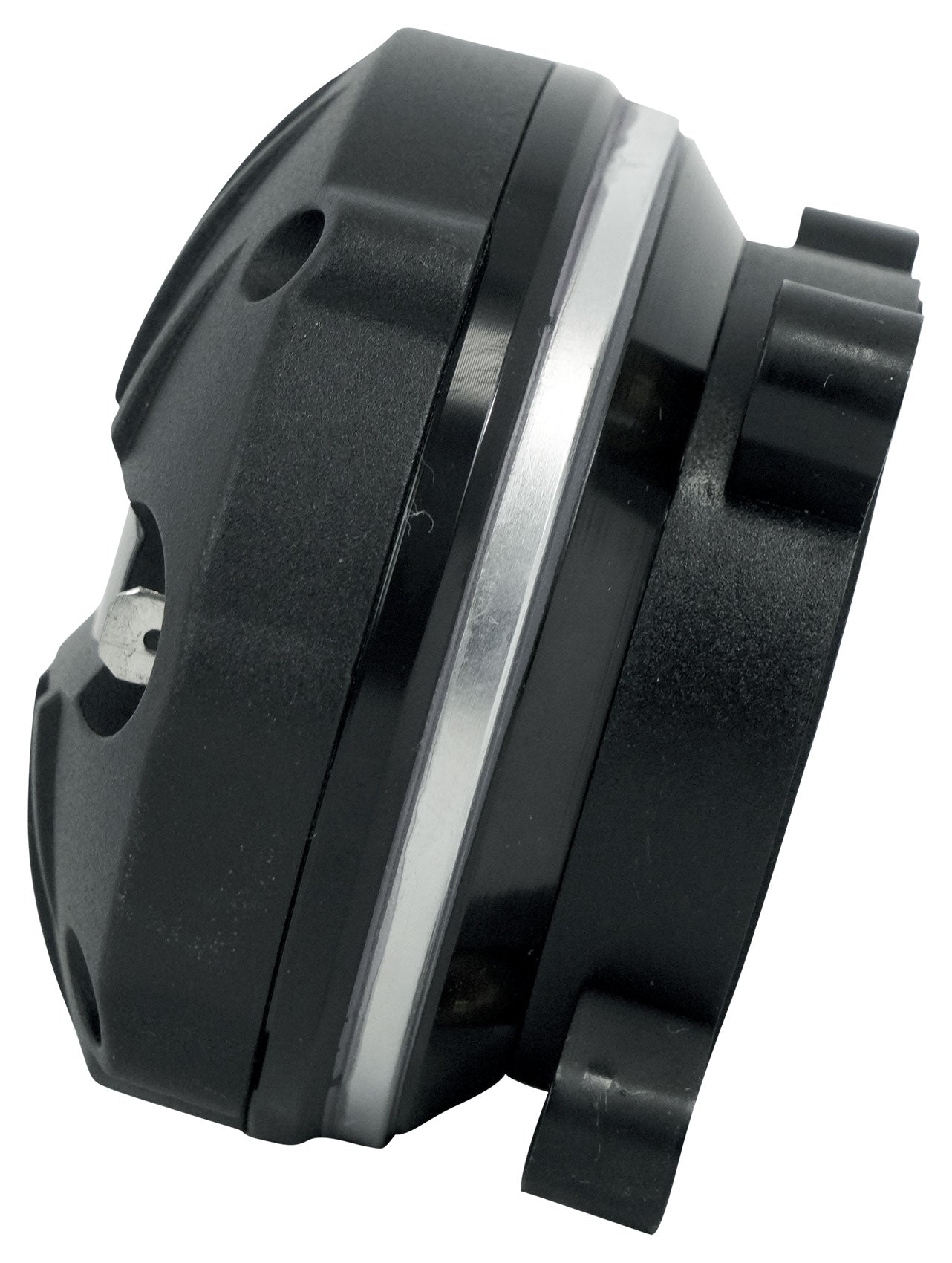

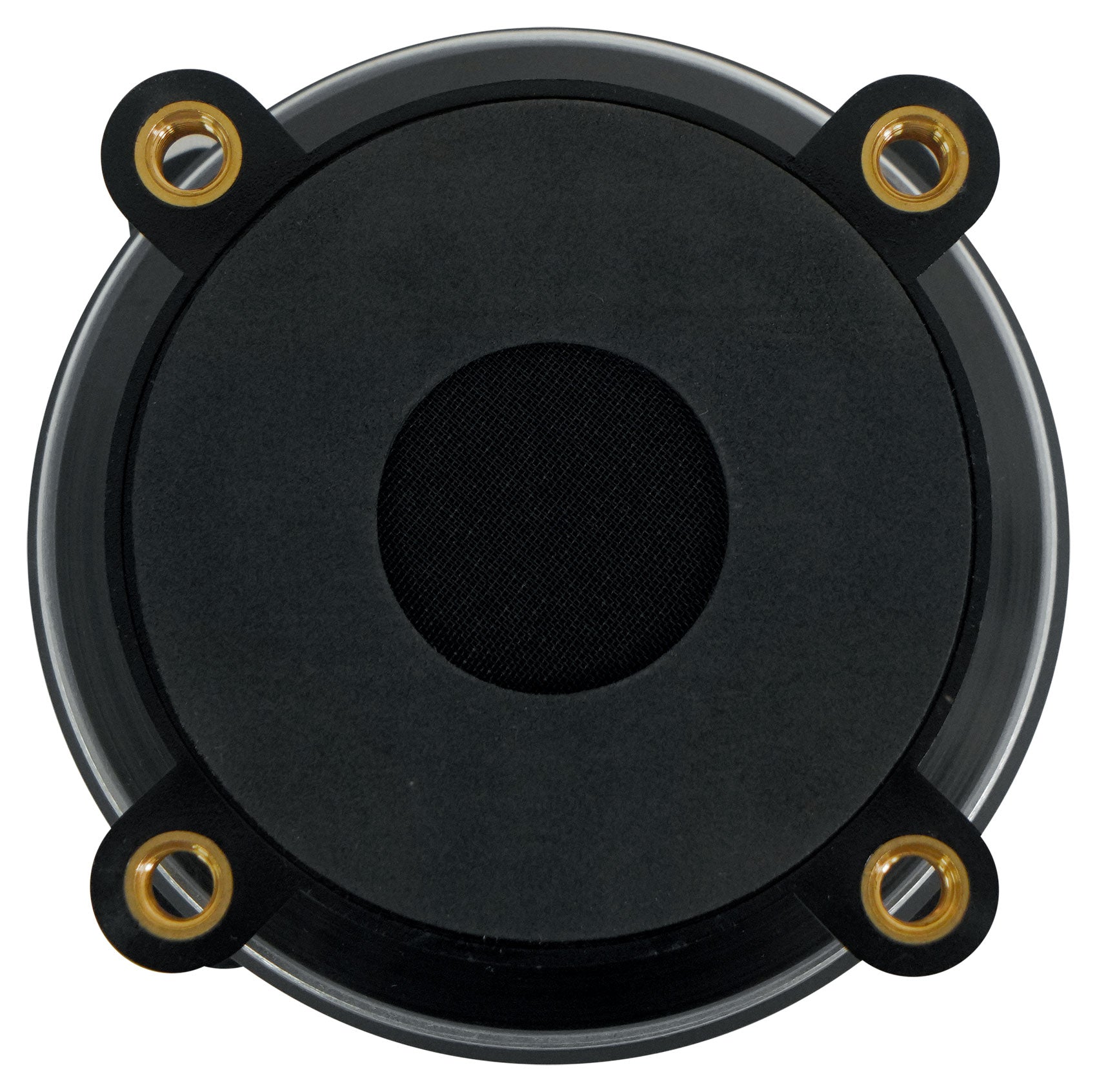

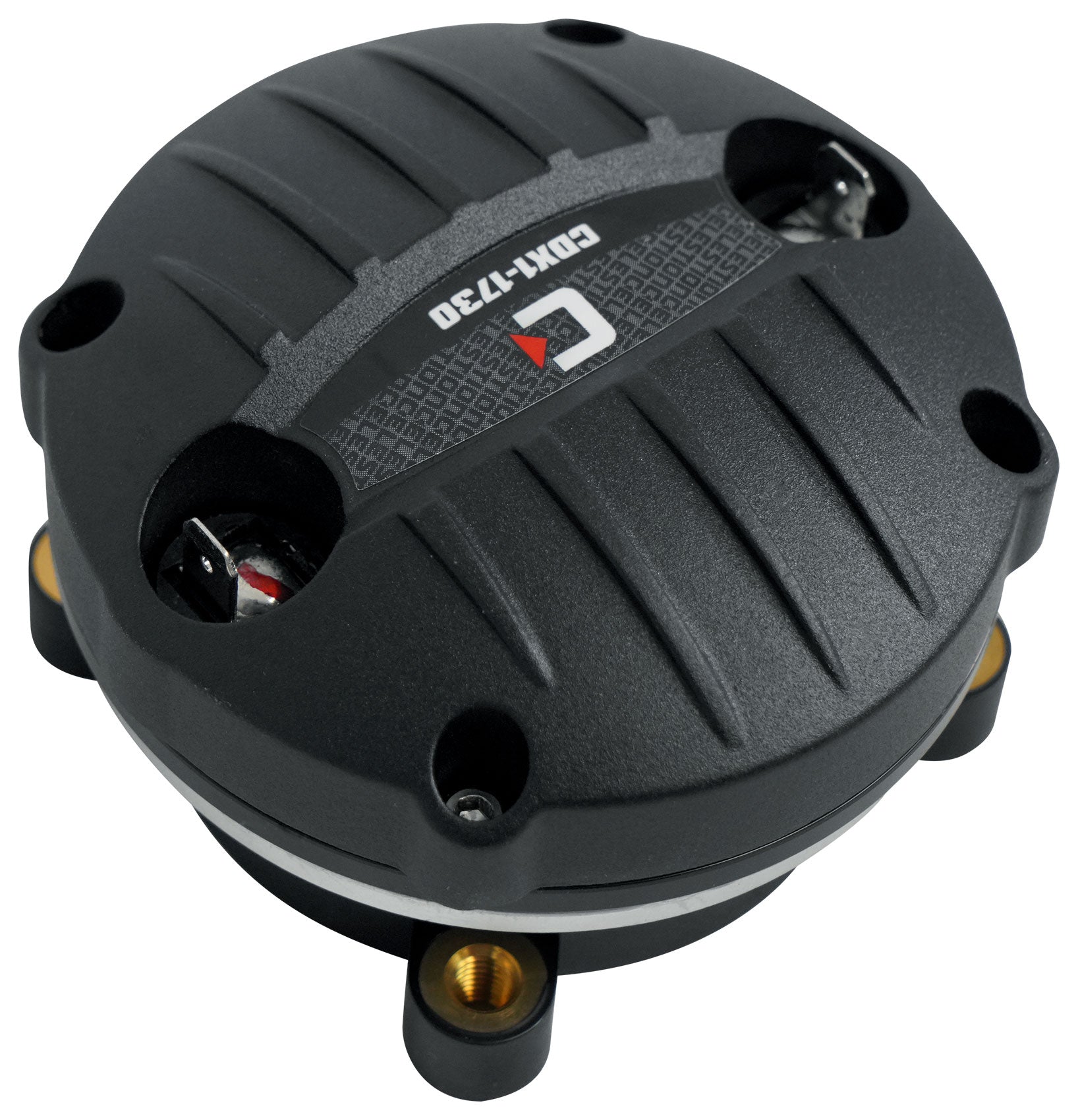

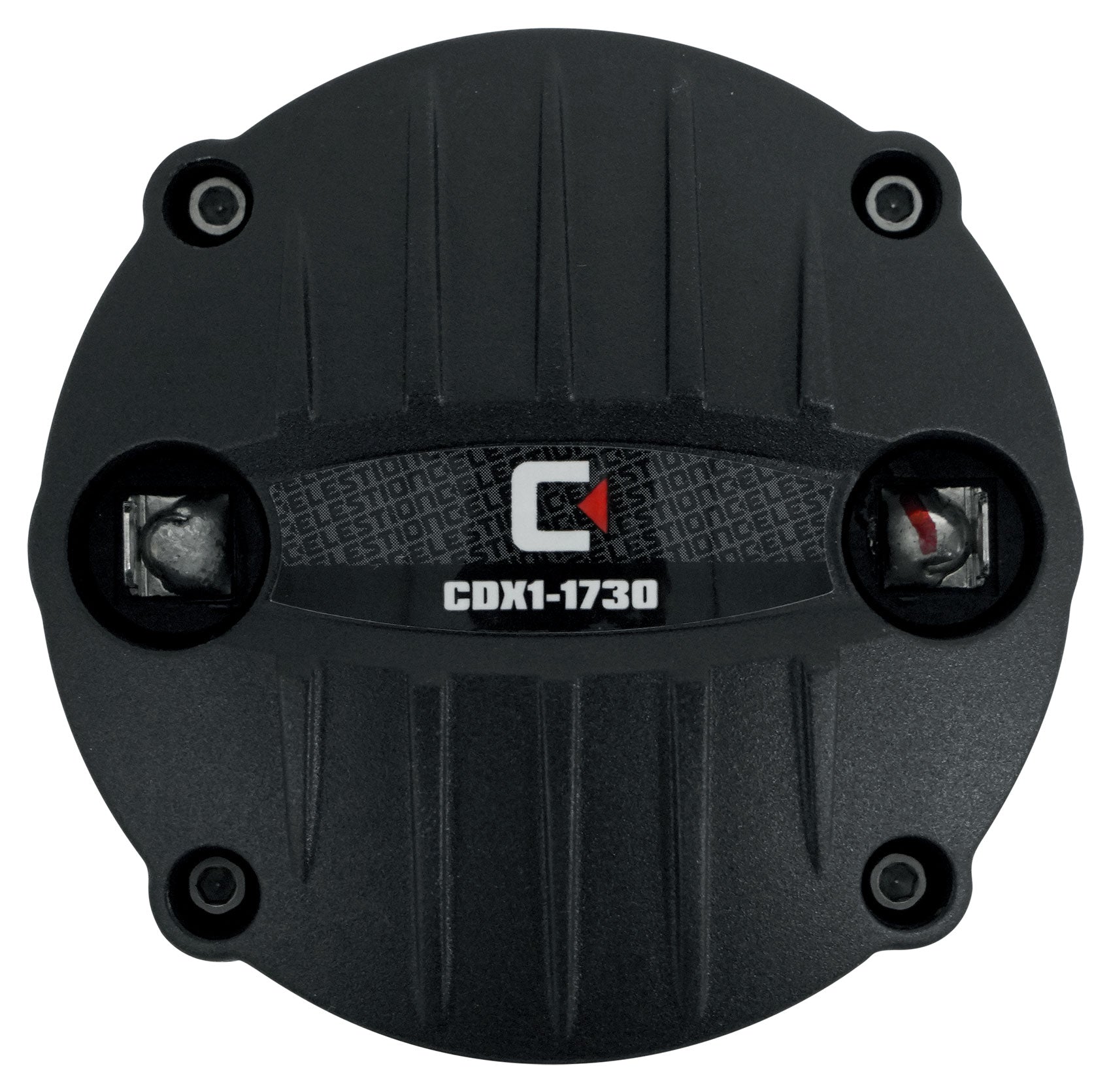

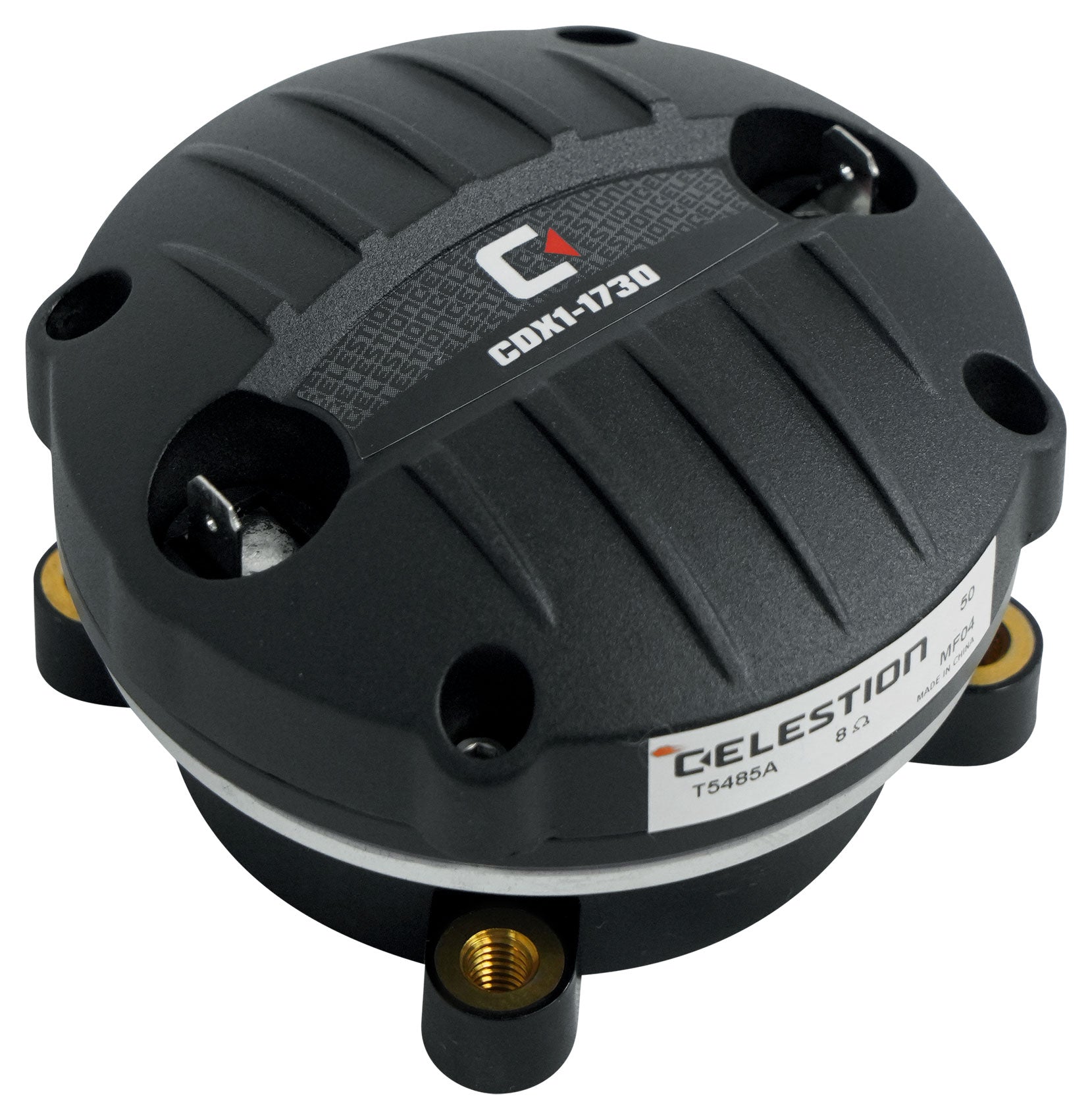

Celestion CDX1-1730 80W Pro Audio PA 1" Compression Driver/Neo Magnet/1" Exit

Features:

• Single piece PETP film diaphragm and surround
• Sound Castle diaphragm assembly
• 2,200Hz recommended min. crossover freq (12dB/oct)
• Bolt fitting

Specifications:

• Power rating: 40W
• Continuous power rating: 80W
• Rated impedance: 8O
• Sensitivity: 110dB
• Frequency range: 1200-20,000Hz
• Recommended min. crossover (12dB/oct): 2200Hz
• Magnet type: Neodymium
• Voice coil diameter: 44mm / 1.75in
• Voice coil material: Edgewound copper clad aluminium
• Diaphragm material: PETP film
• Surround material: PETP film
• Additional impedances: 16O

Mounting Information:

• Width: 88.5mm / 3.5in
• Depth: 55mm / 2.2in
• Fitting: Bolt (4 x M6 holes on 76mm/3in PCD)
• Screw version: CDX1-1731
• Throat exit: 25mm / 1in
• Unit weight: 0.65kg / 1.4lb

Packed Dimensions & Weight:

• Single pack size W x D x H: 90mm x 90mm x 60mm / 3.5in x 3.5in x 2.4in
• Single pack weight: 0.75kg / 1.7lb
• Multi pack qty: 16
• Multi pack size W x D x H: 500mm x 485mm x 110mm / 19.7in x 19.1in x 4.3in
• Multi pack weight: 11.2kg / 24.9lb

Horns and repair kits:

• T5510: Diaphragm repair kit (8O)
• T5523: Diaphragm repair kit (16O)
• T5359: H1-9040P Horn
• T5134: H1-7050 ‘No Bell’ Horn
