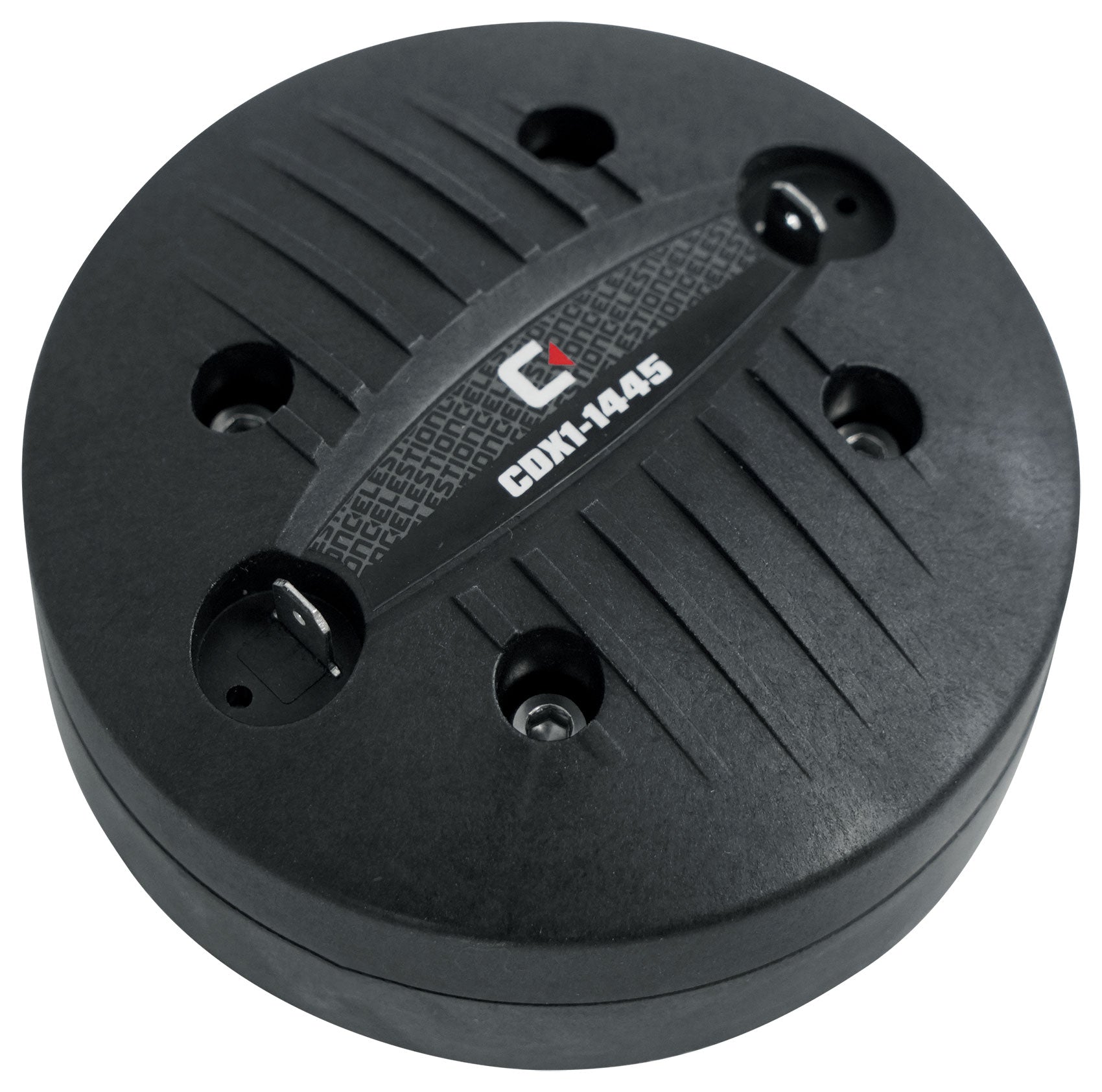

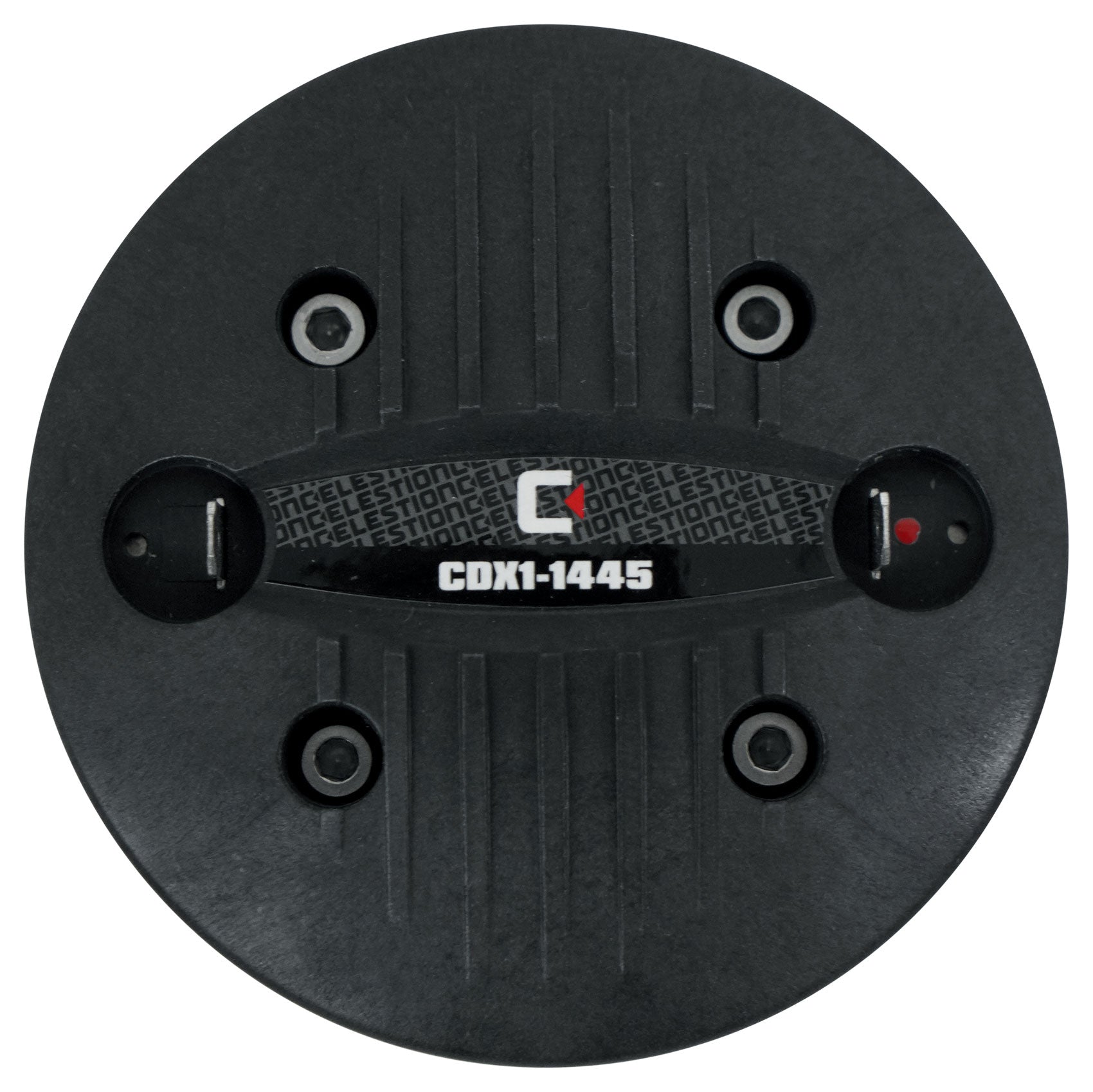

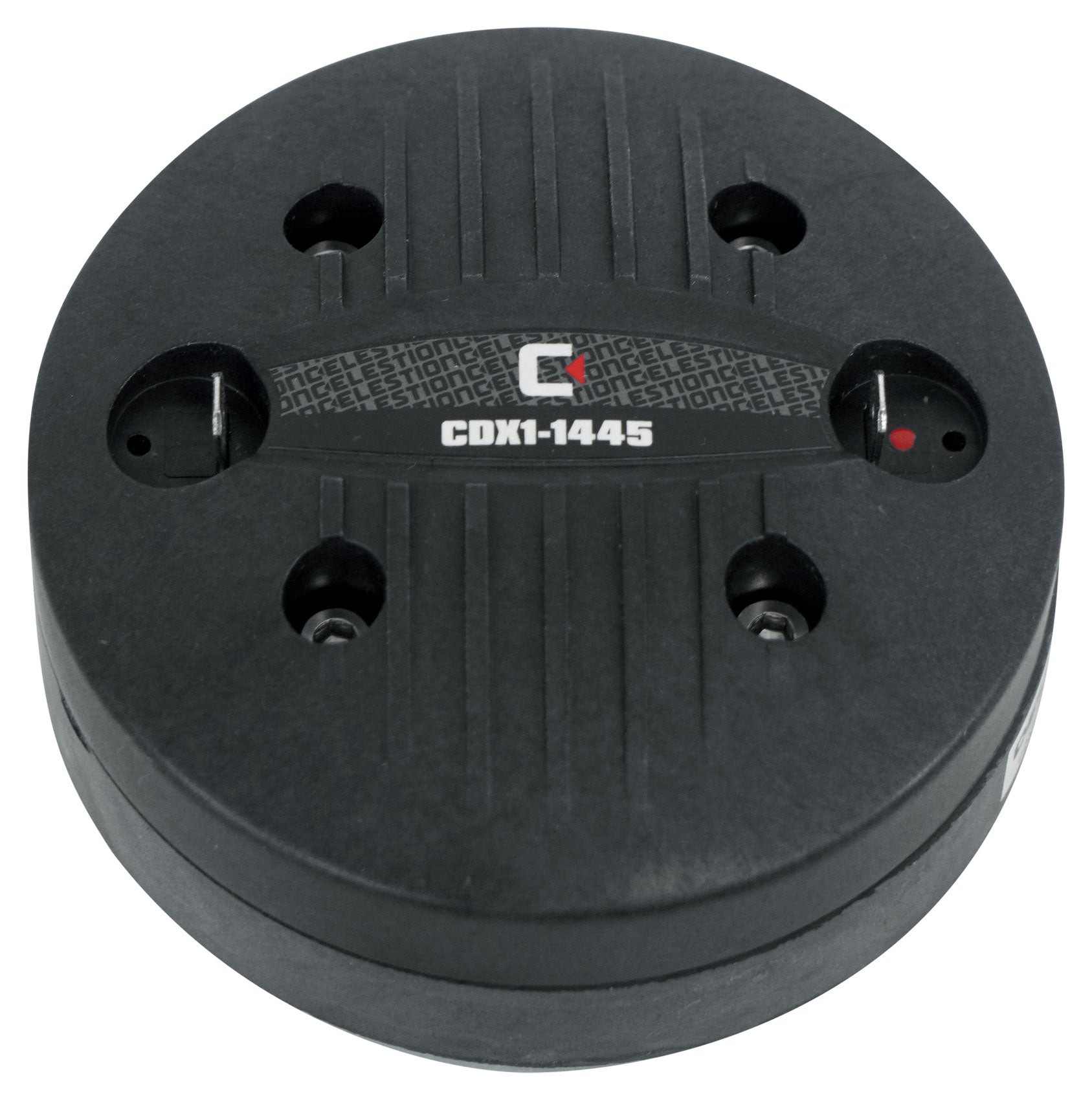

Celestion CDX1-1445 40W Pro Audio PA 1" Compression Driver / Bolt-Fitting 1" Exit

Features:

• Single piece PETP diaphragm and surround
• Integrated diaphragm and rear cover for ease of replacement
• 2,200Hz recommended min. crossover freq (12dB/oct)
• Bolt fitting

Specifications:

• Power rating: 20W
• Continuous power rating: 40W
• Rated impedance: 8O
• Sensitivity: 106dB
• Frequency range: 1500-20,000Hz
• Recommended min. crossover (12dB/oct): 2200Hz
• Magnet type: Ferrite
• Voice coil diameter: 35mm / 1.4in
• Voice coil material: Copper clad aluminium
• Diaphragm material: PETP film
• Surround material: PETP film
• Additional impedances: 16O

Mounting Information:

• Width: 90mm / 3.5in
• Depth: 52mm / 2.1in
• Fitting: Bolt (4 x M6 holes on 76mm/3in PCD)
• Screw version: CDX1-1446
• Throat exit: 25mm / 1in
• Unit weight: 1.0kg / 2.2lb

Packed Dimensions & Weight:

• Single pack size W x D x H: 110mm x 98mm x 81mm / 4.3in x 3.9in x 3.2in
• Single pack weight: 1.5kg / 3.3 lbs.

Horns and repair kits:

• T5549: Diaphragm repair kit (8O)
• T5557: Diaphragm repair kit (16O)
• T5359: H1-9040P Horn
• T5134: H1-7050 'No Bell' Horn
